Τεχνικά Χαρακτηριστικά

  • Κατασκευαστής: Camina Schmid
  • Χώρα κατασκευής: Γερμανία
  • Μήκος Πόρτας: 45cm
  • Ύψος Πόρτας: 80cm
  • Σχήμα Πόρτας: Διαμπερές
  • Ονομαστική ισχύς: 7 kw
  • Κυμαινόμενη ισχύς: 3.4 – 7.8 kw
  • Ενεργειακή απόδοση: > 78%
  • Ενεργειακή κλάση: A
  • Βάρος: 250 kg
  • Εγγύηση: 5 Χρόνια

Φυλλάδια Κατασκευαστή

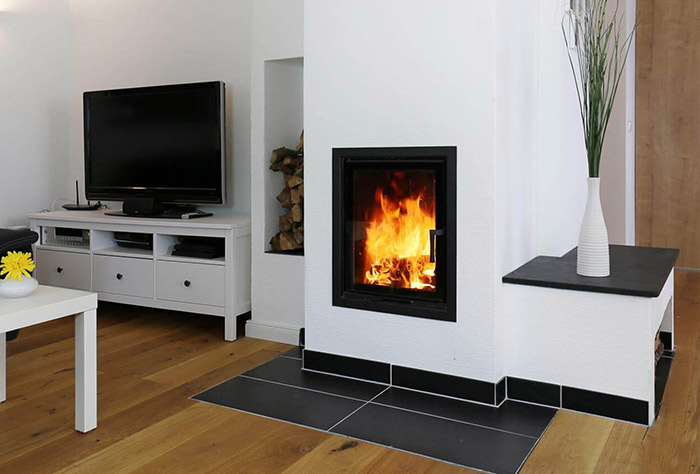

Camina Schmid Lina TV 4580h/s Διαμπερές ενεργειακό τζάκι

Περιγραφή

Lina TV 4580 h / s as tunnel version, Front: 1/2 door can be pushed up, back: door can be swiveled, available in a height of 80 cm

It fits everywhere. The Lina 45 fireplace insert is the ideal combustion technology for compact, appealing fireplace systems. Simple and chic with a straight disc.

FRONT VERSIONS

crystal
The "crystal" front finish is standard with us. With this version, you receive your fireplace insert with a disc printed on 4 sides - this gives your fireplace an elegant and modern look.

anthracite
For those who prefer something a little more robust, we of course still have our "Anthracite" front version in our range. Made of high quality steel, the door profile is characterized by high strength and stability.

INNER LINERS

Premium White
The combustion chamber is lined with innovative chamotte in "premium white" or "anthracite" - on the side with striped chamotte, in the lower area with solid floor stones with a thickness of up to 60 mm. The latest-class chamotte is also particularly hard-wearing with a higher density. And thanks to the less beige color, the fireplace inserts can be integrated even better into different living styles.

Vermiculite
Only available in the 80 door height: As an alternative to conventional chamotte, we also offer you the inner lining with vermiculite panels. In the production of vermiculite, natural mica slate is processed into granules and then pressed into plates. Due to the low thermal conductivity of the material, the temperature can be increased and emissions can be significantly reduced. If you don't want to do without the elegant look of a dark inner lining, we also offer the Vermiculite sheets colored black.
